MODEL NO: 5SZ-40


Product Advantages:

1. The walking wheels on both sides can be controlled separately, the steering is convenient, the control handle is a cross switch, and there is an automatic reset function, which is easy to operate and easy to use.

2. The angle of the collecting shovel and the ground clearance can be adjusted at any time according to actual needs, avoiding the phenomenon of potato damage or potato leakage during the feeding process.

3. The minimum working radius of the equipment is 6 meters, the maximum working radius is up to 10 meters, the working range is adjustable, and the operation adaptability is stronger.

4. The device can be combined with single-layer, double-layer conveyors and other equipment, and the random combination is strong, which greatly saves the cost of purchasing equipment and saves expenses.

5. The key electrical components and important parts of the warehouse machine are imported brands, which ensure the durability and reliability of the equipment.

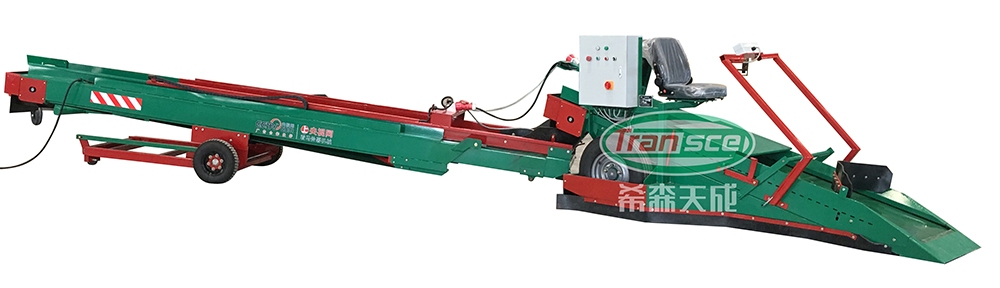

5SZ-40 Potato Scooper



Item

Unit

Parameter Index

Overall dimension

mm

6700*1270*1525

Machine weight

kg

1660

Maximum processing capacity

t/h

40

Damage rate

%

≦1

Maximum radius of gyration

mm 10000
Minimum radius of gyration

mm 6000
